RD11P mini size QR code scanner 1D 2D barcode reader engine oem module PDF417 datamatrix code

Name: RD11P mini size QR code scanner 1D 2D barcode reader engine oem module PDF417 datamatrix code
Brand: Rakinda
Price: 1 USD

China RD11P mini size QR code scanner 1D 2D barcode reader engine oem module PDF417 datamatrix code wholesale

Brand Name : Rakinda

Model Number : RD11P

Certification : CE, RoHS,FCC

Place of Origin : China

MOQ : 1PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C, D/A, D/P, MoneyGram

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Product Name : mini size QR code scanner

Warranty : 1 years

Application : PDA,POS machine handheld devices

Type : Plug and play

Contact Now

RD11P mini size QR code scanner 1D 2D barcode reader engine oem module PDF417 datamatrix code

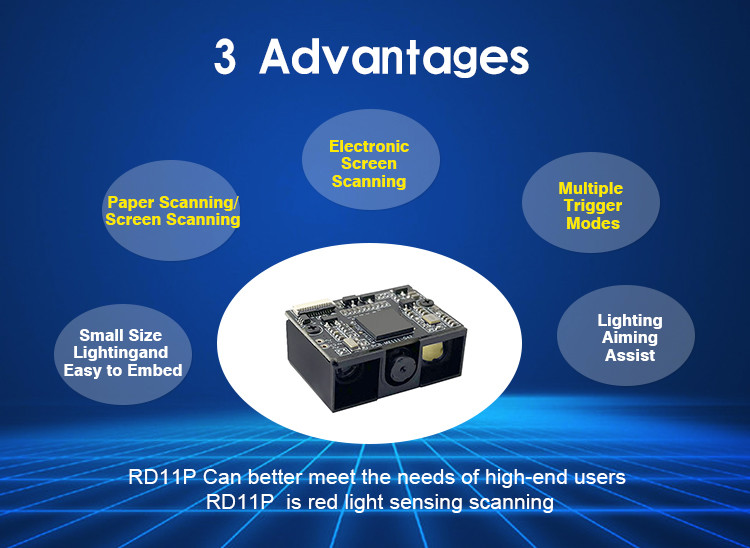

Features:

Armed with Rakinda ’s six-generation of technology, the scan engine can swiftly and effortlessly decode even poor quality barcodes.

1) High Performance & Ultra-Low Power Consumption:The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.

2) All-in-One Design:Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment. Easy for integration.

3) All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards,mobile phones and LCD display.

Application Scenarios (as an accessory)

Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.

RD11P 2D Scan Engine

Specification
Optical System		1280 pixels(H)x 800 pixels(V)
Illumination Element		Aiming: 617nm LED; Illumination 5600K White LED
Depth of Field		30 mm - 320 mm @UPCA -13 mil 100 %,PCS 90%
Scan Angle		46° (H) x 29° (V)
Min. Bar Width		0.1mm(4mil)@Code 39, PCS=90%
Scan Mode		Trigger mode, Auto-sensing, Continuous scan, Pulse mode
Print Contrast		> 30%(UPC/EAN 100% , PCS 90%)
System Interface		USB 1.1 (HID Keyboard,Virtual COM Port) RS-232 (9.6~115.2Kbps)
Depth of Field
PHYSICAL CHARACTERISTICS
Dimensions	28.2mm x 20.5mm x 11.8mm
Weight	About 5g
Input Voltage	DC 3.3V±5%
Operating Current	130 mA ±5%(Typical), 300 mA ±5%(Max.)
REGULATORY
EMC	CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
ENVIRONMENT & SAFETY
Operating Temperature	-20℃~50℃
Humidity	5%~95% (non-condensing)
Storage Temperature	-40℃~+70℃
Light Level	0~100,000Lux(fluorescence )
DECODING CAPABILITY
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded PDF417 MicroPDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code Reads barcode reliably of cell phone screens
